Mining hoses operate in some of the harshest mining environments, constantly exposed to abrasive slurries, high pressures, rough handling and demanding operating conditions. While a quality mining hose is designed for long service life, premature failures are often caused by incorrect hose selection, poor installation or operating conditions rather than the hose itself.
Understanding the most common causes of mining hose failure can help reduce downtime, improve safety and significantly extend hose service life.

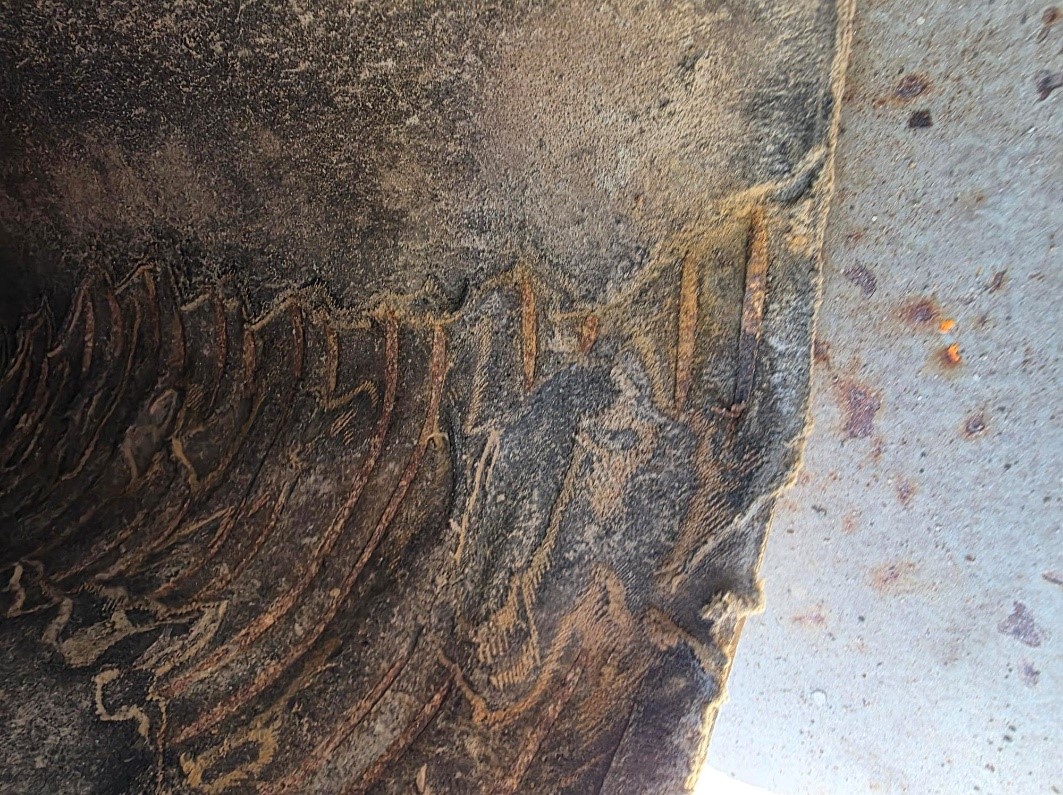

Abrasion is by far the leading cause of mining hose failure. Highly abrasive slurries gradually wear away the internal rubber liner until the reinforcement becomes exposed.
Factors affecting abrasion include:
Not all abrasion-resistant compounds perform equally. Some compounds are better suited to fine, high-velocity slurries, while others perform better in coarse, highly abrasive applications. Our exclusive Abrasatech liner, used throughout our Abrasor and Turboflex mining hose range, delivers industry leading abrasion resistance to maximise hose life and reduce replacement frequency. For the most severe wear applications, we also manufacture ceramic lined mining hoses that provide even greater service life.

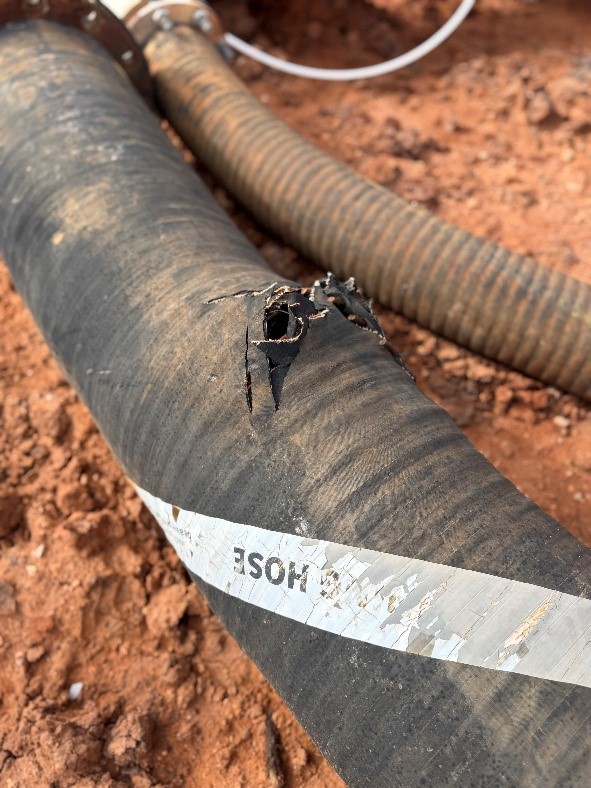

Selecting a hose with an insufficient working pressure can cause excessive reinforcement fatigue, permanent expansion and ultimately catastrophic failure.
A mining hose pressure rating should be based on:
As a minimum, mining hoses should be manufactured with a 4:1 safety factor, meaning the burst pressure is at least four times the maximum working pressure..
Every mining hose has a minimum bend radius. Bending beyond this limit can prematurely wear the hose and cause permanent damage including:

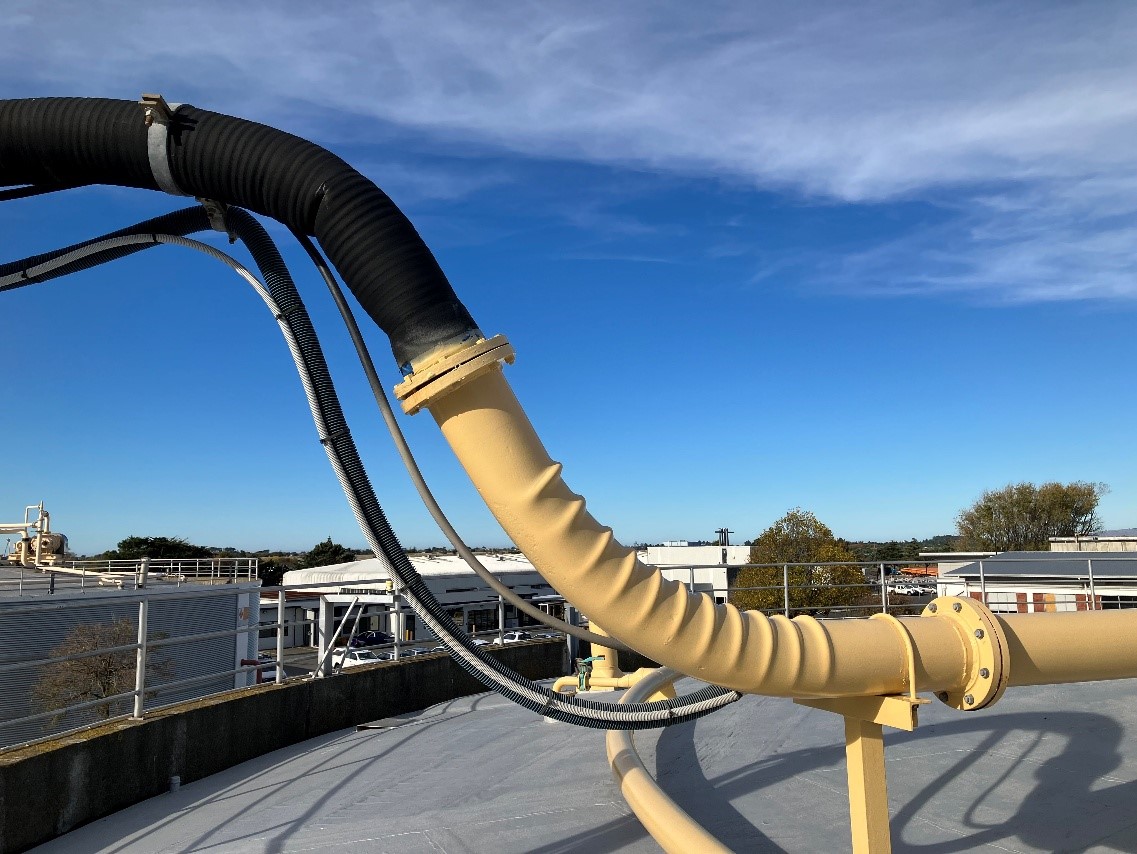

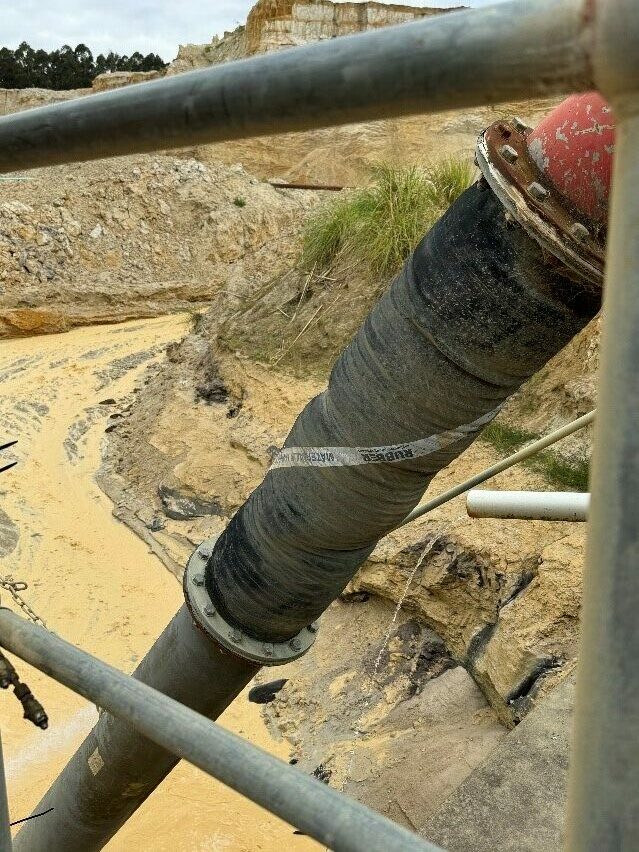

Over flexed mining hoses
Where tight installation spaces cannot be avoided, selecting a more flexible mining hose can dramatically reduce these stresses. Our Turboflex XT10 Series Mining Hose is the most flexible mining hose in the world, and a good option for complex installations.
Improper installation is responsible for many avoidable hose failures.
Common installation mistakes include:
Correct installation allows the hose to flex naturally during operation and prevents unnecessary stress on both the hose body and end connections. For installation best practices, read our Complete Mining Hose Installation Guide.
Hard wall mining hoses provide excellent vacuum resistance through their internal wire helix. However, repeated impact from heavy machinery or rough terrain can permanently deform the wire, reducing both vacuum performance and service life.
Where hoses are regularly driven over or subjected to heavy impact, a soft wall mining hose is often a better solution. Without an internal wire helix, it can flex under load without permanent deformation, making it well suited to these demanding applications.
Chemical exposure and elevated operating temperatures often work together to accelerate mining hose failure. Not every rubber compound is suitable for every application, and standard hose materials can rapidly deteriorate when exposed to acidic slurries, aggressive process chemicals or excessive heat.
High temperatures accelerate rubber ageing, causing the hose to lose flexibility and mechanical strength, while chemical attack can lead to swelling, softening or cracking. Selecting a hose manufactured with the correct rubber compound for both the process media and operating temperature is essential to achieving maximum service life.
A good example is our work at Glencore’s Murrin Murrin operation, where slurry hoses were experiencing premature failures due to a combination of elevated temperatures and aggressive process media. By redesigning the hose with our Flowtech high-temperature, chemical resistant rubber compound, we increased service life by more than 3X dramatically reducing downtime and replacement costs.
A mining hose operating under vacuum must be specifically designed to resist collapse. This is typically achieved using a spring steel wire helix embedded within the hose wall. Lower quality mining hoses may use undersized wire or mild steel reinforcement, significantly reducing vacuum performance.
All Abrasor and Turboflex mining hoses are manufactured using locally sourced spring steel wire, providing excellent resistance to vacuum collapse and external crushing forces.
The hose body is often not the first component to fail the end connection is.
Poorly designed or incorrectly installed couplings can lead to:
Integrally moulded flanges and reinforced end designs significantly improve end retention and reliability in high-pressure applications.
Many hose failures occur simply because the hose was never designed for the application.
Before specifying a mining hose, manufacturers should be provided with the following information:
Every mining application is different, and selecting the correct hose requires balancing all of these operating conditions not simply choosing the correct diameter.
Most premature mining hose failures can be avoided by selecting the correct hose for the application, following proper installation practices and carrying out regular inspections. The table below summarises the most common causes of hose failure and the recommended solution.
| Cause of Failure | How to Prevent It |
|---|---|

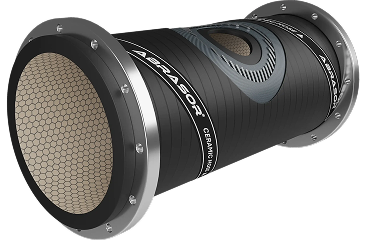

| Abrasion | Use an abrasion-resistant liner such as Abrasatech or upgrade to ceramic lining for severe wear. |
| Incorrect Pressure Rating | Specify maximum operating pressure, including pressure spikes and surges. |
| Excessive Bend Radius | Avoid bending hose beyond its recommended radius. Use Turboflex XT10-Series where tighter routing is required. |
| Incorrect Installation | Follow the recommendations in our Mining Hose Installation Guide. |
| External Damage | Select the appropriate hose construction and protect against impact and vehicle traffic. |
| Chemical and Heat | Select rubber compounds specifically designed for the chemicals and temperatures present in the process. |
| Vacuum Collapse | Use a spring steel wire-reinforced suction hose. |
| End Connection Failure | Ensure the hose is fitted with robust end connections suited to the correct pressure and application. |
| Incorrect Hose Selection | Consult experienced mining hose specialists before specifying the hose. |
Selecting the right mining hose from the outset is one of the most effective ways to reduce maintenance costs, minimise downtime and maximise service life. At Pacific Flow Technology, our mining hose experts work closely with customers to design hose assemblies that are tailored to their specific operating conditions, delivering reliable performance in even the most demanding mining environments.
In mining and slurry pipelines, correct flange bolt torque is essential for safe, leak-free hose performance.
Unlike rigid steel pipe, mining hose contains rubber components that compress during tightening. This means bolt tension can reduce after the first pass, requiring multiple tightening cycles to achieve the correct final clamp load.
These torque values are intended for bolting a rubber beaded end mining hose to a flat steel flange face.
It is also important to understand that every application is different. Pressure, end construction, hose application, bolt grade, can all influence the final torque required.
The values below should therefore be used as a general installation guide only.
Please note the above torque values do not apply to different connection styles such as rubber-to-rubber joints, fixed flanges, flanged coupling or Victaulic ends. For these styles different procedures may apply.
Unchanged:
Poor alignment can cause leaks even when the bolts are torqued correctly.
Install all bolts, nuts, and washers.
Hand tighten first so the flange faces pull together evenly.
Do not fully tighten one bolt at a time.
Tighten bolts in a star pattern to apply even pressure across the rubber bead.
For an 8 bolt flange the sequence will look like the above diagram
Because rubber absorbs pressure and settles under load, bolts must be gone over at least three times at full load.
Recommended method:
| Pass | Torque |
|---|---|
| Pass 1 | 75% of target torque |
| Pass 2 | 100% of target torque |
| Pass 3 | 100% of target torque |
| Pass 4 | 100% of target torque |

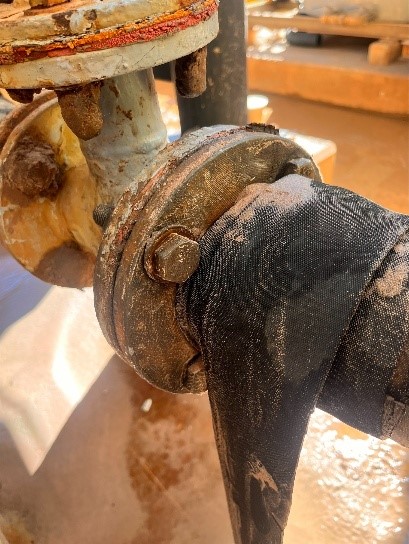

Once the hose is installed and pressurised, inspect the flange joint for leaks.
Check for:
If the hose continues to leak after the correct torque procedure:
It is critical to increase torque in small increments. Over torquing can distort the flange or backing ring causing premature wear or failure.
Before putting the hose into full service, confirm:
Correct bolt torque, alignment, and installation procedure are critical to achieving safe and reliable mining hose performance.
In mining operations, hose failure is never just an inconvenience. A burst or prematurely worn hose can stop production, create safety risks, spill slurry, and drive up maintenance costs. That is why selecting a high quality mining hose is one of the most important decisions in any slurry handling system.
While many hoses may appear similar on the outside, the real difference lies in the materials, engineering, and manufacturing quality behind them. A premium mining hose is designed not just to work, but to deliver longer wear life, safer performance, and lower total cost over time.

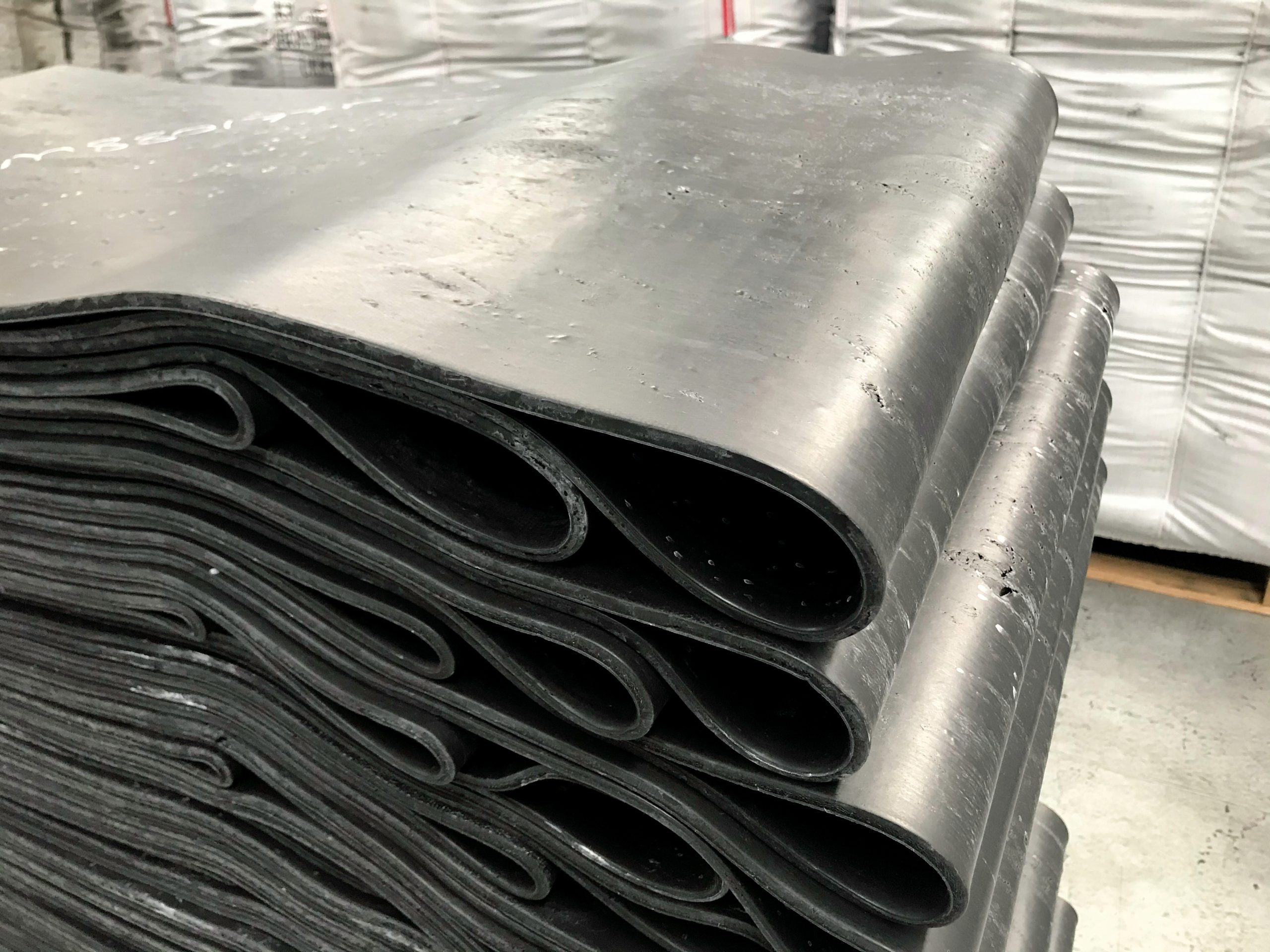

The single biggest factor in mining hose performance is the quality and thickness of the inner liner.
Mining slurry often contains highly abrasive particles such as silica, iron ore, coal fines, and mineral concentrate. These materials continuously wear away at the inside of the hose during operation. A high quality hose uses specially developed rubber compounds with low abrasion loss, reducing liner wear and extending service life.
Liner thickness is equally important. A thicker wear liner provides more sacrificial material, increasing overall hose life in abrasive duties.
Low quality hoses may use cheaper rubber blends or thinner liners that wear rapidly, crack early, or harden over time. While cheaper upfront, they often cost far more through frequent replacements and downtime.
In some applications, we have seen up to 5x longer wear life when comparing our Abrasatech liner to lower quality equivalent abrasion-resistant liners.
A mining hose must withstand internal pressure, vacuum, and external forces such as flexing, dragging, vibration, and movement.
Key reinforcement features found in a high quality mining hose include:
Incorrect textile selection or under-gauge mild steel wire can lead to failures such as collapse under vacuum or bursting under pressure.

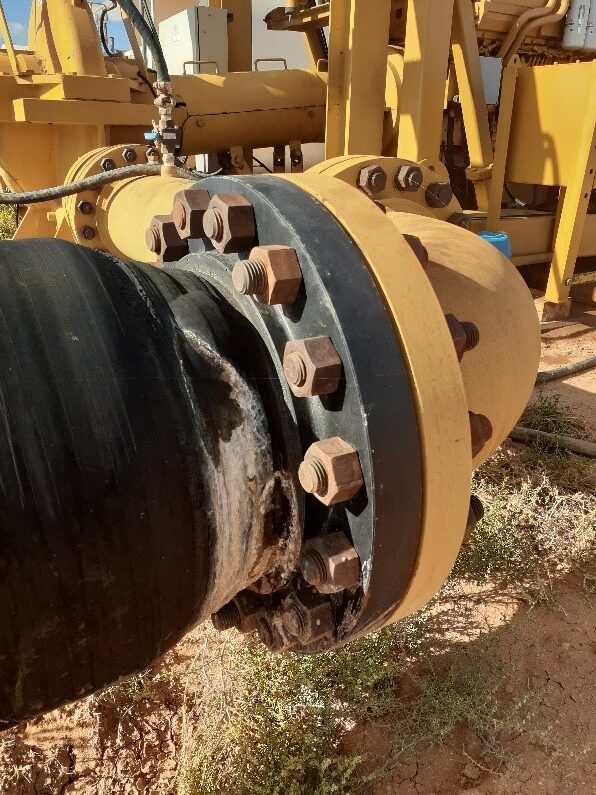

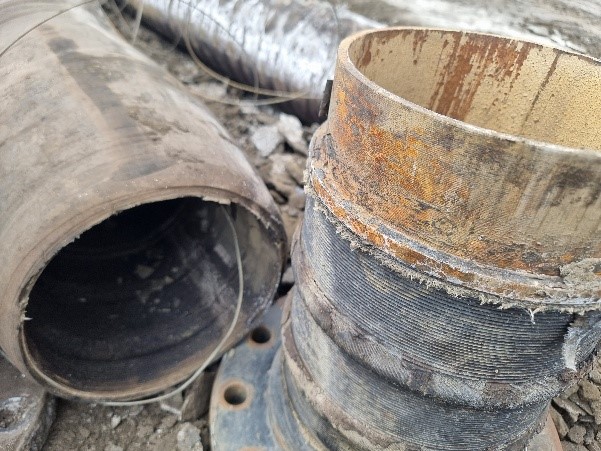

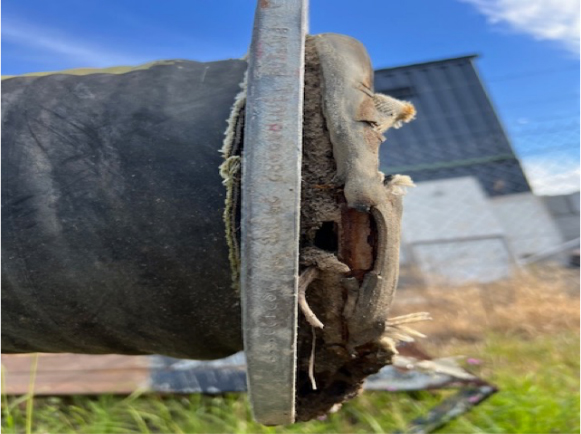

Many hose failures occur at the ends rather than the hose body itself. Poorly designed beaded ends or couplings can lead to leaks, pull-outs, or catastrophic failures.
A premium mining hose uses over engineered ends designed with maximum textile reinforcement.
Common failures we see from poorly designed ends include:
High quality hoses maximise flexibility without compromising structural integrity. Hoses lacking flexibility often kink, flatten, or wear prematurely, causing flow restrictions and shorter service life.
Ultra-flexible hose designs such as our Turboflex range flex smoothly while maintaining internal bore shape.
Mining hose needs enough flexibility to absorb vibration, allow movement, and simplify installation.

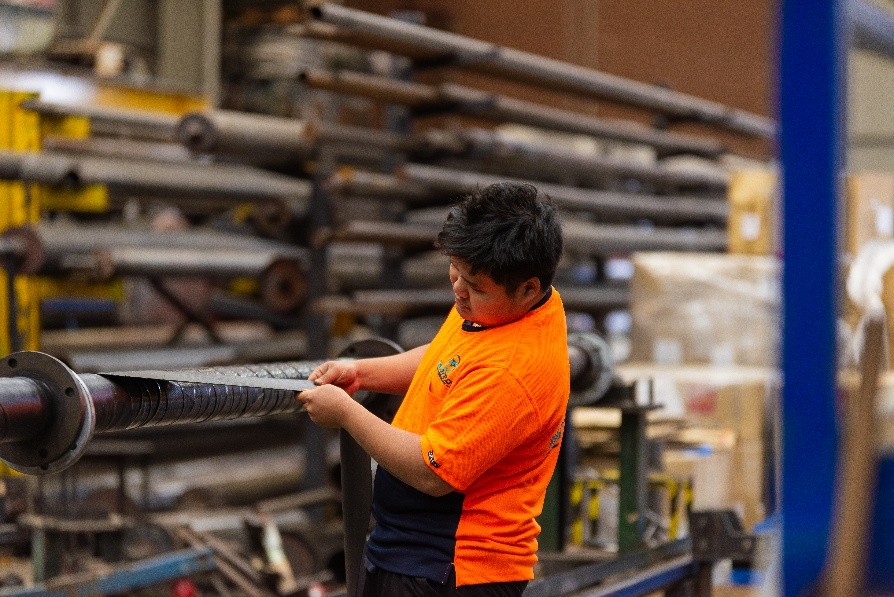

Even the best materials mean little without controlled manufacturing standards. A high quality mining hose should be built under strict quality management system.
The best way to assure consistent quality is to find a manufacture with an ISO9001 approved quality management system.
Low-cost hoses may reduce purchase price, but hidden costs usually outweigh the savings:
A longer lasting hose with higher upfront value often becomes the cheapest option over its life cycle.
A high quality mining hose is not defined by appearance alone. It is the result of premium liner compounds, strong reinforcement, over designed end connections, controlled manufacturing, and real-world proven performance.
When selecting hose for mining service, focus on wear life, reliability, and total cost of ownership rather than purchase price alone.
In demanding slurry applications, the right hose can save thousands in downtime and maintenance while keeping your operation running safely and efficiently.
Choosing the right mining hose or slurry hose is critical to reliability, safety, and long-term operating cost. The wrong hose can lead to leaks, rapid wear, downtime, and repeated replacement costs. The right hose can improve uptime, reduce maintenance, and deliver a lower total cost of ownership.
Every application is different, so selecting the correct hose starts with understanding how and where it will be used.
The first question is simple: what product is moving through the hose?
For abrasive slurry containing ore, tailings, sand, or rock fines, wear resistance is usually the most important factor. In these applications, liner quality has a major impact on hose life.
Important factors include:
For demanding duties, a high-quality slurry hose with a premium abrasion-resistant liner is often the best solution.
Our Abrasatech® wear liner has world leading abrasion resistance and is our go to choice for most high wearing slurries.
For water transfer applications such as dewatering, irrigation, or hydromining, flexibility, pressure rating, and handling are often more important than abrasion resistance.

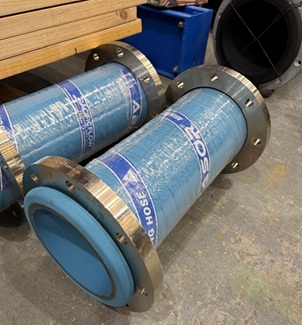

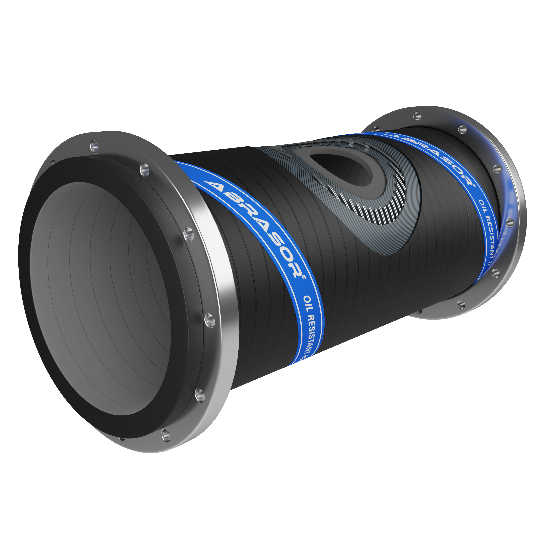

If chemicals, oils, diesel, or hydrocarbons are being conveyed, a standard rubber hose may not be suitable. These applications require specially selected compounds designed for chemical resistance.
Always confirm compatibility before selecting a hose.
Your mining hose must be suitable for both pressure and vacuum conditions.
The hose should safely handle:
Selecting too low a pressure rating can lead to failure. Selecting too high can add unnecessary cost and stiffness.
Suction lines, pump inlets, and dredging applications may require vacuum-rated hose. Standard hose can collapse under suction if not designed correctly.
Suction hose will always include:
This is especially important for slurry pump suction lines.
The hose connection style should suit your plant and maintenance requirements.
The most common option for slurry hose systems. Flanged ends provide a secure bolted connection and suits low to high pressure applications.
Common standards include:
It is important to confirm the correct drilling pattern before manufacture.
Often used where quick installation and easy maintenance are required.
Common for lines where hoses need to be cut to length on site.
Often used with muff couplings, or hose tail type couplings such as Bauer or Camlocks.

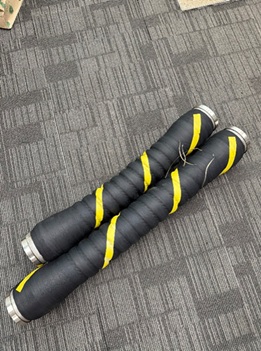

Rubber lined shouldered Victaulic ends

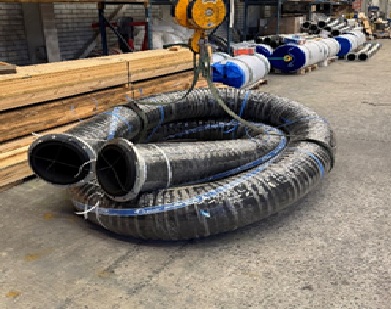

Not all mining hoses are equally flexible, and this can be critical in many applications.
Flexibility is important where there is:
If a hose is too stiff, it may kink, place stress on fittings, or fail early.
For applications requiring maximum flexibility, we can offer our Turboflex range of mining hose —the most flexible mining hose in the world.
Selecting the right flexible hose can greatly improve service life and ease of use.
A mining that has kinked due to a lack of flexibility.
DN300 Turboflex XT10 Series mining hose
Some applications have special requirements that need to be considered when designing and manufacturing a mining hose.
Hot slurry, warm water, or elevated ambient temperatures can shorten hose life if unsuitable materials are used.
Coal mining and hazardous areas may require FRAS hose construction.
Ports, branches and extra flanges can be added on for specialty applications.

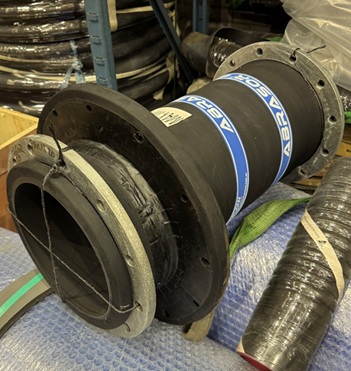

Specially manufactured mining hose with fixed centre flange for a dredging application
The best mining hose or slurry hose depends on the application. Material conveyed, pressure, vacuum, connection style, flexibility, and operating environment all affect performance.
When the right hose is selected, sites benefit from:
If you are unsure whether your current slurry hose is the best fit, reviewing the application with an experienced mining hose manufacturer can often deliver major improvements.
